![Withdrawable Switchgear]()
Withdrawable SwitchgearParameter Value
Rated Voltage: 40.5 kV
Rated Current: Up to 1600 A
Enclosure Protection: IP4X
Main Circuit Resistance: < 160 μΩ -
![Fixed Pattern Switchgear]()
Fixed Pattern SwitchgearRated voltage: 12kV
Rated frequency:50Hz
Rated current: 630A, 1000A, 1250A, 1600A, 2000A
Rated short-circuit breaking current: 20kA, 25kA, 31.5kA
Rated short-time withstand... -
![High Voltage Gas Insulated Switchgear]()
High Voltage Gas Insulated SwitchgearAltitude: ≤2000 meters
Ambient temperature: -40 degrees Celsius to +40 degrees Celsius
Seismic resistance: 8 degrees, horizontal acceleration ≤ 0.4g, vertical acceleration ≤ 0.2g -
![Environmentally Friendly Gas Switchgear]()
Environmentally Friendly Gas SwitchgearAmbient air temperature: Upper limit +40℃, Lower limit -40℃
Humidity: The daily average relative humidity is no more than 95%; the monthly average is no more than 90%.
Water vapor... -
![General Electric Low Voltage Switchgear]()
General Electric Low Voltage SwitchgearThe MNS type low-voltage withdrawable switchgear (hereinafter referred to as switchgear) is a low-voltage withdrawable switchgear product developed by our company, based on the foreign MNS series... -
![Low Tension Switchgear]()
Low Tension SwitchgearMain circuit rated voltage (V) : AC 400/660
Auxiliary circuit rated voltage :AC 220, 380(400), DC 110, 220
Rated frequency (Hz) :50(60)
Rated insulation voltage (V)... -
![Low and Medium Voltage Switchgear]()
Low and Medium Voltage SwitchgearRated operating voltage : AC 400V (660V optional)
Rated insulation voltage: AC 690V
Rated frequency: 50Hz
Rated current of horizontal bus : 630A～4000A
Vertical bus rated... -
![Electrical Lv Panel]()
Electrical Lv PanelGGD type AC low-voltage distribution cabinet is suitable for AC 50Hz power distribution systems in power plants, substations, industrial and mining enterprises, and other power users, with a rated... -
![Electrical Distribution Cabinet]()
Electrical Distribution CabinetThe XL-21 type low-voltage power distribution cabinet is used for power distribution in power plants and industrial/mining enterprises, in three-phase four-wire or three-phase five-wire systems... -
![Low-Voltage Terminal Distribution Box]()
Low-Voltage Terminal Distribution BoxRated operating voltage : 220V / 380V AC
Rated insulation voltage : 500V
Rated frequency :50Hz
Rated operating current : ≤400A
Protection level : IP30 / IP40 / IP54 / IP65... -

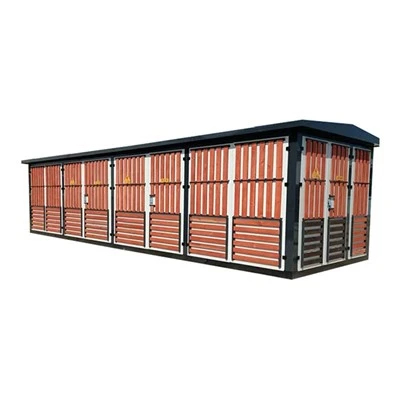

![Smart Substation in Smart Grid]()
Smart Substation in Smart GridAmbient temperature : -25℃ to +40℃, with a 24-hour average not exceeding +35℃.
Altitude :≤2000m (reduced capacity required for applications exceeding this limit)
relative humidity... -
![Intelligent Substation]()
Intelligent SubstationProduct Model : YBM-12 Series
Implementation Standard : GB/T 17467-2020 "High Voltage/Low Voltage Prefabricated Substations"
Version : V1.0
As one of the most professional power switchgear manufacturers and suppliers in China, we have world-leading production equipment and strong manufacturing capabilities. Please feel free to buy high quality power switchgear made in China here from our factory.
12kv distribution substation, fixed type switchgear, gcs electrical cabinet
